Before setup

  • Ensure the smart lock is installed with batteries. Open the front plate, press and hold the Reset button for more than 5 seconds until the indicator is blinking blue. The device is in binding mode.
  • Scan the QR code to download and install the Anona Security app to your phone.
    Note: Or you can search for “Anona Security” in the app store to download and install it. Your mobile phone must be running Android 5.0, iOS 12.0, or a later version.
  • Ensure your phone is connected to the internet and Bluetooth is enabled.

Set up the smart lock

    1. Open the app and log in your Anona Security account. Tap “Add device”.
    2. In the searching result page, find the smart lock to bind, and tap Add.
      Note: The Bluetooth name of the lock is located on the product’s label.
    3. Wait for the binding process to complete and then connect Wi-Fi.
      Note: This product only supports 2.4GHz Wi-Fi networks, 5GHz Wi-Fi networks are not supported.
    4. Set the device name and tap Save.
    5. Install the smart lock following the installation video. If the smart lock has been installed, skip this step.
    6. Calibrate the smart lock following the animated images. When calibration completes, tap OK.
    7. Choose to enable the Auto-lock function or enable it later in the smart lock’s settings. Then you will be led to the smart lock’s plug-in page, indicating the setup completes.

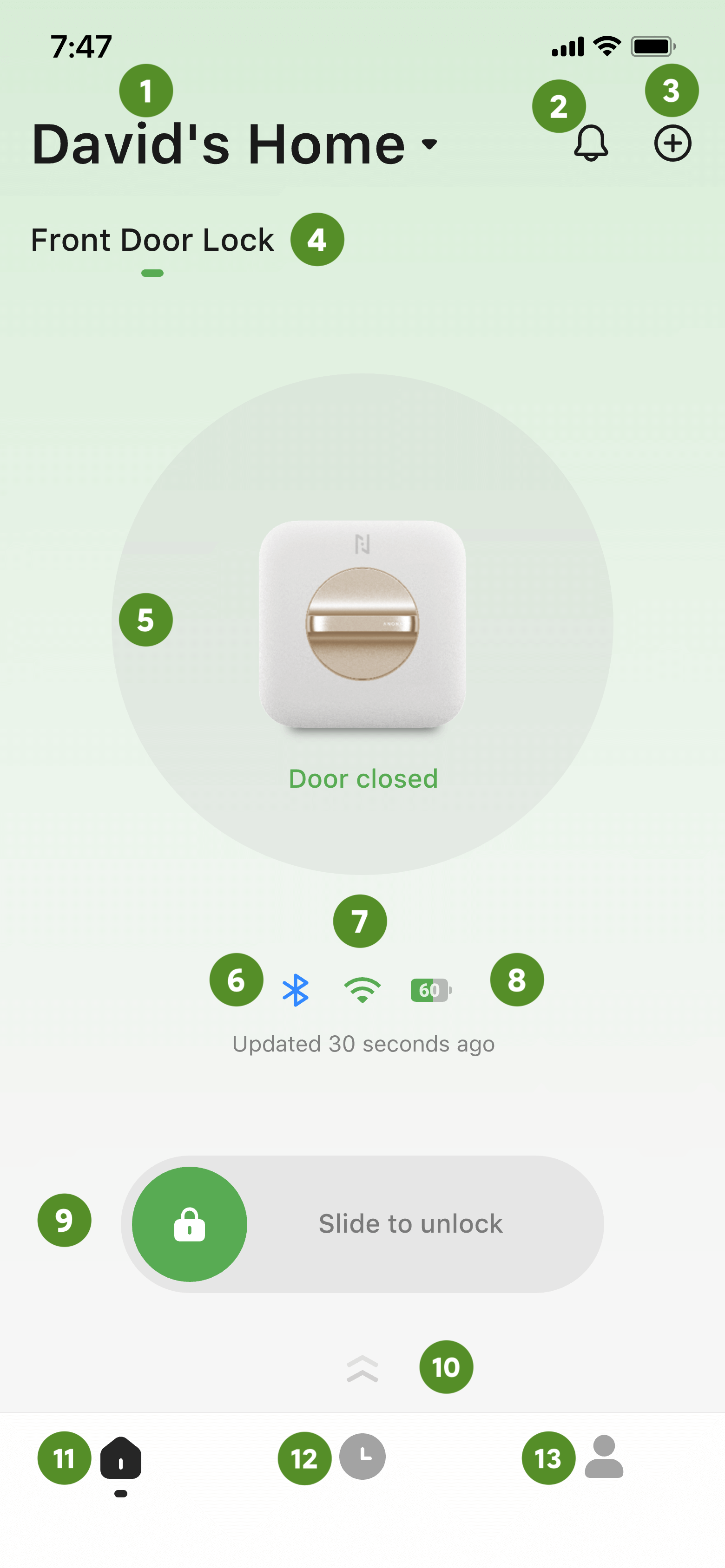

Smart lock plug-in page

①: Family name
②: Tap to enter message center.
③: Tap to add more device.
④: Smart lock name
⑤: Device lock/unlock state
⑥: Bluetooth is well connected.
⑦: Wi-Fi is well connected.
⑧: Battery level
⑨: Slide to lock/unlock
⑩: Slide up to enter settings.
⑪: Tap to enter the device page. If you have more than one smart lock added, swipe left or right to view individual plug-in pages.
⑫: Tap to enter the event page. You can view the door lock/unlock history.
⑬: Tap to enter my space page. You can set the Anona security app related settings herer.

Delete the smart lock

  1. Open the Anona Security app, tap icon  and find the smart lock.
  2. In the plug-in page, swipe up to enter settings.
  3. Tap Lock settings.
  4. Scroll to the bottom of the page and tap Delete device.

After the deletion, the smart lock will return to factory settings. If a keypad is bound to the smart lock, it will also be deleted and reset to factory settings.
