Install the camera

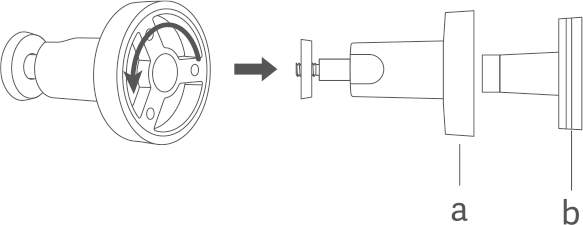

1. Rotate counterclockwise to disassemble the camera bracket.
a. Locking cap
b. Base

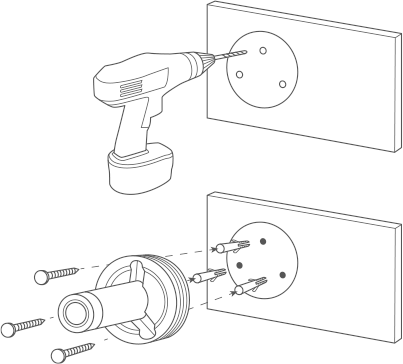

2. Drill holes based on the mounting sticker (drill bit size: 6 mm), insert the wall anchors, and fix the base to the wall with screws.

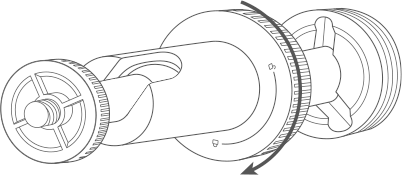

3. Fix the locking cap onto the base.

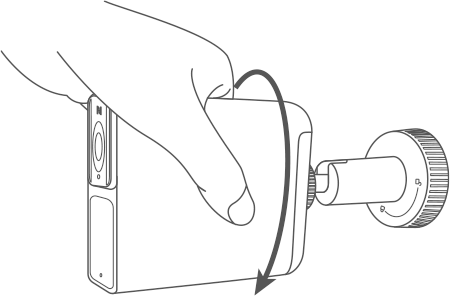

4. Hold the camera by hand and screw it to the bracket.

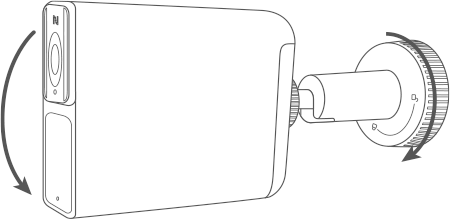

5. Loosen the locking cap, hold the camera by hand and adjust the angle. After adjustment, tighten the locking cap.

Note: Please install the camera with its power port facing downwards. When the power port is not used, please cover it with the protective cover to prevent water ingress.
